292206-4 TE Connectivity | PCBX Electronics

292206-4

Manufacturer:

TE Connectivity

Mfr.Part #:

292206-4

Datasheet:

Description:

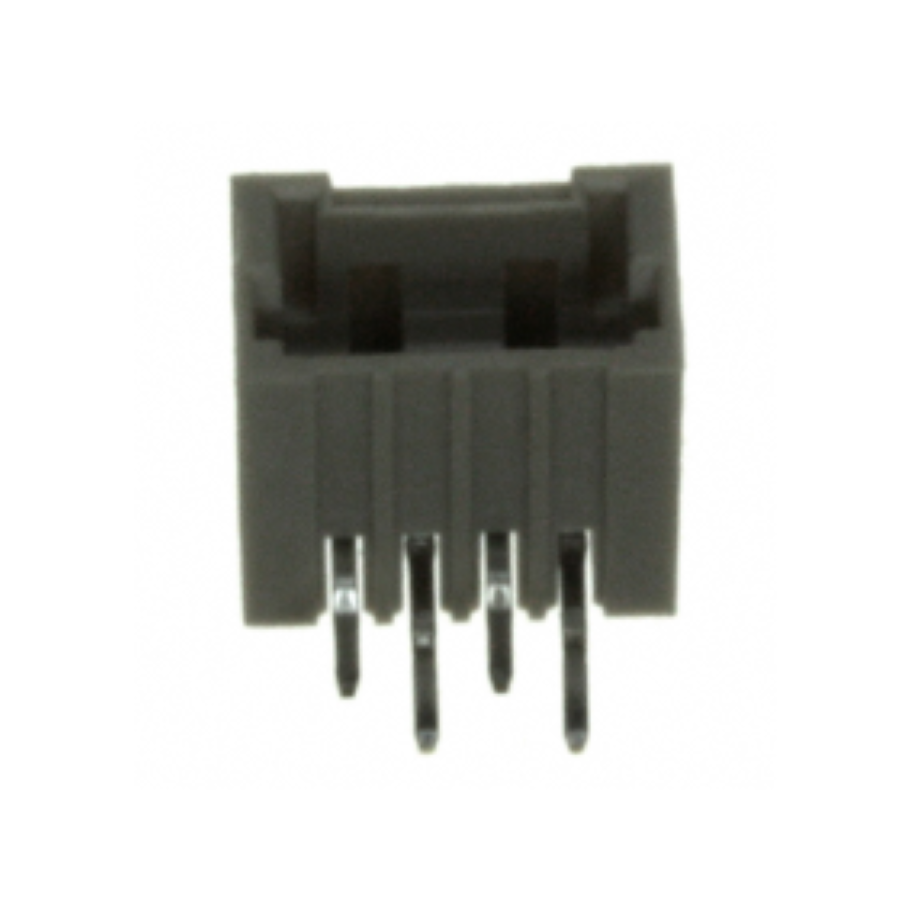

Headers and Wire Housings Through Hole Header, Pin Number of Positions:4 Pitch:1.5 mm

Parameter	Value
Length	8.4836 mm
Width	4.8768 mm
Termination	Solder
Max Operating Temperature	105 °C
Min Operating Temperature	-22 °C
Height	8.4328 mm
Packaging	Bulk
Voltage Rating	50 V
Depth	8.45 mm
Lead Free	Lead Free
RoHS	Compliant
Contact Plating	Tin
Contact Material(Contact Finish)	Brass
Pitch	1.5 mm
Current Rating	2 A
Max Voltage Rating (DC)	5.05 kV
Flammability Rating	UL94 V-0
Approvals	CSA
Orientation	Right Angle
Operating Supply Voltage	50 V
Lifecycle Status	Production (Last Updated: 1 week ago)
Color	Grey
Gender	Male
Number of Contacts	4
ELV	Compliant
Connector Type	Header, Pin
Wire/Cable Gauge	22 AWG
Number of Positions	4
Number of Rows	1
Housing Material	Nylon
Connector System	Wire-to-Board
Contact Style	Pin
Contact Resistance	30 mΩ
Max Voltage Rating (AC)	50 V
Shape	Rectangular
Contact Current Rating	2 A
Housing Color	Natural
Plating	Tin
Insulation Diameter	1.0414 mm
Contact Mating Length	2.3876 mm
PCB Mounting Orientation	Right Angle
PCB Thickness	1.6002 mm
Tail Length	3 mm
Plating Thickness	2 µm
Contact Gender	Male
Mating Post Length	2.4 mm
Contact Shape	Square
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Sealable	No
Mating Retention	With
Contact Finish Thickness - Mating	1 µm
Termination Post Length	3 mm
PCB Mount Retention	With
PCB Mount Alignment	With
